HYPERTHERM PLASMA ONDERDELEN

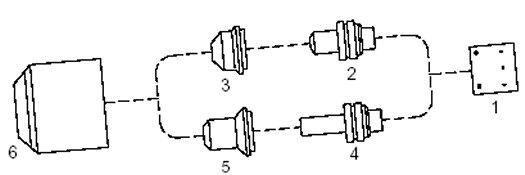

PLASMA ONDERDELEN GESCHIKT VOOR HYPERTHERM ® |
PLASMA ONDERDELEN VOOR MAX 20 ®, POWERMAX 350 ®,
POWERMAX 380 ® |
Item No: | Omschrijving | | 1 | Swirl ring | | 2 | Electrode - Hf. | | 3 | Tip Ø 0,73 - .029 | | 4 | Electrode, extended - Hf. | | 5 | Tip, extended Ø 0,73 - .029 | | Tip, extended Ø 0,81 - .032 | | 6 | Nozzle retaining cap |
|

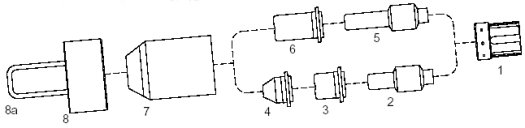

PLASMA ONDERDELEN VOOR POWERMAX 800 ® |
Item No: | Omschrijving | | 1 | Swirl ring | | 2 | Electrode - Hf. (replaces 020351) | | 3 | Tip, 40 Amp, PAC121T/M | | Tip, 50 Amp, PAC121T/M | | 4 | Tip, 50 Amp, PAC121T | | 5 | Extended electrode - Hf. (replaces 020547) | | 6 | Tip, Extended, PAC121T | | 7 | Tip, Pipe Saddle, PAC121T/M | | 8 | Cap, Retaining, PAC121T/M | | 9 | Shield, PAC121T (hand) | | 10 | Shield, PAC121M (machine) | | 11 | Spring holder protection nut, PAC121T/M | | 12 | Spacer spring for code 51987 (10 pcs) | | 13 | Nozzle retaining cap | | 14 | Spacer complete with springs | | 14a | Spare springs (20 pcs) |
PLASMA ONDERDELEN VOOR POWERMAX 900 ® |
Item No: | Omschrijving | | 1 | Swirl ring | | 2 | Electrode - Hf. | | 3 | Tip, 55A, Shielded, PAC125T/M | | 4 | Extended electrode - Hf. | | 5 | Tip, 35A, Extended, PAC125T | | Tip, 55A, Pipe Saddle, Extended, PAC125T | | 6 | Cap, Retaining, PAC125T/M | | 7 | Shield, PAC125T (hand) | | 8 | Shield, PAC125M (machine) | | 9 | Deflector PAC125T/M |

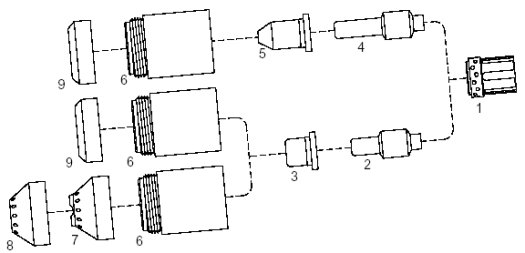

PLASMA ONDERDELEN VOOR MAX 40CS ® - MAX 42 ® - MAX 43 ® |
Item No: | Omschrijving | | 1 | Swirl ring | | 2 | Electrode - Hf. (replaces 020351) | | 3 | Tip Ø 0,96 - .038 | | 4 | Tip Ø 1,06 - .042 | | 5 | Pipe saddle tip | | Extended electrode - Hf. (replaces 020547) | | 6 | Tip, extended Ø 0,96 - .038 | | 7 | Nozzle retaining cap | | 8 | Spacer complete with springs | | 9 | Spare springs ( 20 pcs) |

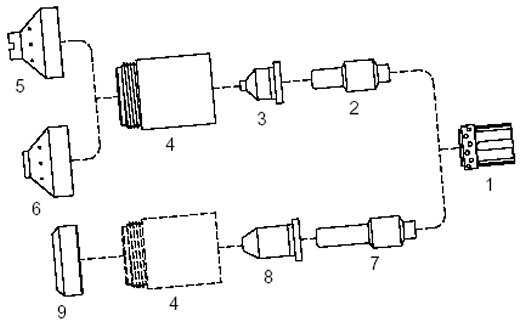

PLASMA ONDERDELEN VOOR POWERMAX ® 600 - PAC123T/M ® |
Item No: | Omschrijving | | 1 | Swirl ring | | 2 | Electrode - Hf. | | 3 | Tip, 40A | | 4 | Cap, Retaining | | 5 | Shield (Hand) | | 6 | Shield (Machine) | | 7 | Extended electrode - Hf. | | 8 | Tip, 35A, Extended | | 9 | Deflector |

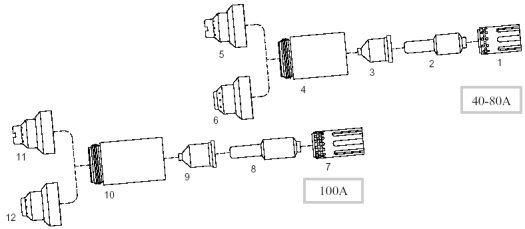

PLASMA ONDERDELEN VOOR POWERMAX ® 1000/1250/1650 - T60/T60M ® - T80/T80M ® - T100/T100M ® |
Item No: | Omschrijving | | 1 | Swirl ring | | 2 | Electrode - Hf. | | 3 | Tip, 40A | | Tip, 60A | | Tip, 80A | | 4 | Cap, Retaining | | 5 | Shield (Hand) | | 6 | Shield (Machine) | | 7 | Swirl ring | | 8 | Electrode - Hf. | | 9 | Tip, 100A | | 10 | Cap, Retaining | | 11 | Shield (Hand) | | 12 | Shield (Machine) |

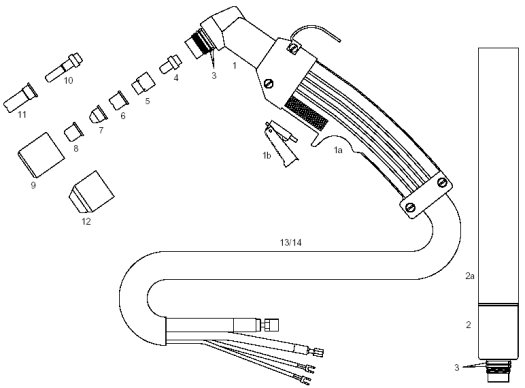

PLASMA ONDERDELEN VOOR MAX 40 ® |
Item No: | Omschrijving |
| Hand torch with 25'cable (1/2 - 20 connection) | | Hand torch with 50'cable (1/2 - 20 connection) | | Machine torch with 25' cable (1/2 - 20 connection) | | Machine torch with 50' cable (1/2 - 20 connection) | | 1 | Torch body (hand) complete with handle and microswitch | | 1a | Handgrip complete with switch | | 1b | Switch | | 2 | Torch body (machine) | | 2a | Machine spare handle | | 3 | O - Ring (20 pcs) | | 4 | Electrode - Hf. | | 5 | Swirl ring | | 6 | Tip, hand torch | | 7 | Pipe saddle tip, machine torch | | 8 | Tip, machine torch | | 9 | Nozzle retaining cap | | 10 | Electrode, extended - Hf. | | 11 | Tip, extended | | 12 | Nozzle retaining cap, tapered | | 13 | Air and power cable 25' - Hand torch | | Air and power cable 50' - Hand torch | | 14 | Air and power cable 25' - Machine torch | | Air and power cable 50' - Machine torch |

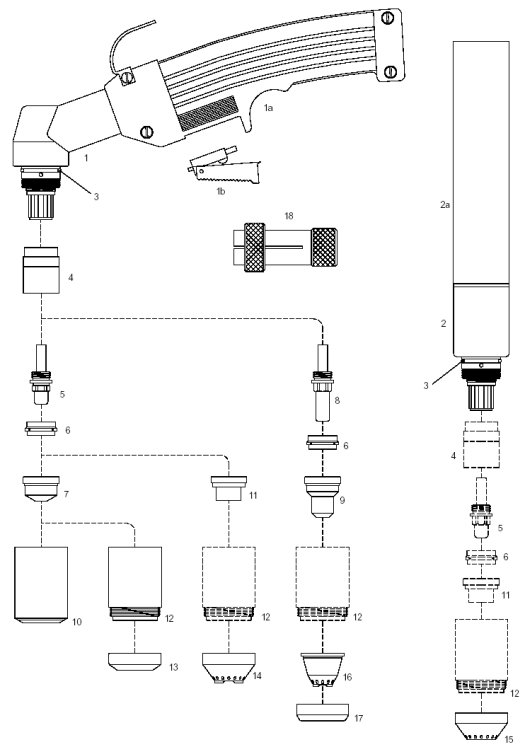

PLASMA ONDERDELEN VOOR MAX 80 ® - MAX 100 ® |
Item No: | Omschrijving | | Hand torch with 25'cable (1/2 - 20 connection) | | Hand torch with 50'cable (1/2 - 20 connection) | | Machine torch with 25' cable (1/2 - 20 connection) | | Machine torch with 50' cable (1/2 - 20 connection) | | 1 | Torch body (hand) complete with handle and microswitch | | 1a | Handgrip complete with switch | | 1b | Switch | | 2 | Torch body (machine) | | 2a | Machine spare handle | | 3 | O - Ring (20 pcs) | | 4 | Front insulator | | 5 | Electrode, Air, MAX 80/100, PAC 130, (replaces 020191) | | 6 | Swirl ring, MAX 80/100, PAC 130 | | 7 | Tip, standard, 40A., MAX 80/100 Ø 1,0 - .038 | | Tip, standard, 80A., MAX 80/100 Ø 1,3 - .052 | | Tip, standard, 100A., MAX 100 Ø 1,5 - .059 | | 8 | Electrode - Hf., extended, PAC 130 | | 9 | Tip, extended, PAC 130 Ø 1,0 - .038 | | Tip, extended, PAC 130 Ø 1,4 - .055 | | 10 | Nozzle retaining cap MAX 80/100, PAC 130 | | 11 | Contact tip 40A., MAX 80/100 Ø 1,0 - .038 | | Contact tip 80A., MAX 80/100 Ø 1,3 - .052 | | Contact tip 100A., MAX 80/100 Ø 1,5 - .059 | | 12 | Contact nozzle retaining cap, MAX 80/100, PAC 130 | | Contact nozzle retaining cap, MAX 80/100, PAC 130, Max.life | | 13 | Deflector | | 14 | Spacer for contact cutting, hand | | 15 | Shield cup, machine | | 16 | Spacer for contact cutting, hand (for extended tip item 10) | | 17 | Locking nut | | 18 | Extractor for swirl ring | | Air and power cable 25' - Hand torch | | Air and power cable 50' - Hand torch | | Air and power cable 25' - Machine torch | | Air and power cable 50' - Machine torch |
PLASMA ONDERDELEN VOOR MAX 200 ® - HT-2000 ® |
Item No: | Omschrijving | | 1 | Electrode, O2, Air, 100A w/ O-ring | | Electrode, O2, Air, 200A w/ O-ring (replaces 020664 and 020414) | | 2 | Nozzle .038 , Air , 40A | | 3 | Nozzle .055 , O2, 100A (MAX 200 ®) | | Nozzle .059 , Air, N2, Ar/H, 100A | | 4 | Nozzle .086 , Air, N2, Ar/H, 200A | | Nozzle .082 , O2, 200A | | Nozzle .055 , O2, 100A (HT-2000 ®) | | Nozzle Gouging , Air, 200A | | 5 | Retaining Cap | | 6 | Shield Cap 100A | | Shield Cap 200A |

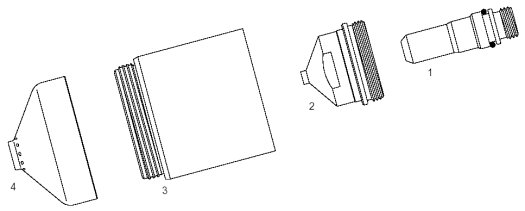

PLASMA ONDERDELEN VOOR HT-2000 HYSPEED |
Item No: | Omschrijving | | 1 | Electrode 200A O2 | | Electrode 200A O2, Solid Silver | | 2 | Nozzle 200A O2 | | 3 | Retaining Cap 200A O2 | | 4 | Shield Cap 200A O2 |
|
|
