EWS PLASMA ONDERDELEN
PLASMA ONDERDELEN GESCHIKT VOOR EWS ® |

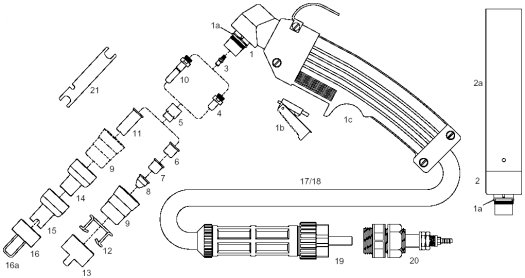

PLASMA ONDERDELEN VOOR EX 40 - 2V, EX 60 |
Item No: | Omschrijving | | Hand torch complete with 6 mtr cable (central connector) | | Hand torch complete with 12 mtr cable (central connector) | | Machine torch complete with 6 mtr cable (central connector) | | Machine torch complete with 12 mtr cable (central connector) | | 1 | Hand torch head | | 1a | O - Ring (20 pcs) | | 1b | Switch | | 1c | Handgrip complete with switch | | 2 | Machine torch head | | 2a | Machine handle | | 3 | Diffusor | | 4 | Electrode - Hf. | | 5 | Swirl ring | | 6 | Tip Ø 0.9 - 35A | | Tip long life Ø 1.0 - 50A | | Tip long life Ø 1.1 - 60A | | Tip long life Ø 1.2 - 70A | | Tip Ø 1.2 - 70A | | 7 | Flat tip Ø 0,9 | | Flat tip Ø 1,2 | | 8 | Pipe saddle tip Ø 1,0 | | Pipe saddle tip Ø 1,2 | | 9 | Nozzle retaining cap | | 10 | Extended electrode - Hf. | | 11 | Extended tip Ø 0.9 - 35A | | Extended tip long life Ø 1.0 - 50A | | Extended tip long life Ø 1.1 - 60A | | Extended tip long life Ø 1.2 - 70A | | 12 | Spacer spring (10 pcs) | | 13 | Double pointed spacer | | 14 | Shield cup, hand (for extended tips W0300236 and W0300111) | | 15 | Spacer for contact cutting, hand (for extended tips W0300237 and W0300112) | | 16 | Spacer complete with springs | | 16a | Spare springs (20 pcs) | | 17 | Air and power cable 6 mtr 1/8" - Hand torch | | Air and power cable 12 mtr 1/8" - Hand torch | | 18 | Air and power cable 6 mtr 1/8" - Machine torch | | Air and power cable 12 mtr 1/8" - Machine torch | | 19 | Central connector torch side | | 20 | Central connector machine side | | 21 | Wrench for electrode |
|

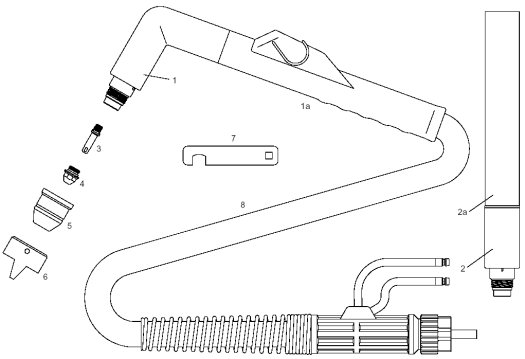

SPARE PARTS FOR EX 100 RF |
Item No: | Omschrijving | | Hand torch complete with 6 mtr. cable (central connector) | | Hand torch complete with 12 mtr. cable (central connector) | | Machine torch complete with 6 mtr. (central connector) | | Machine torch complete with 12 mtr. (central connector) | | 1 | Hand torch head complete with W0300160, W0300161 and 60354 | | 1a | Handgrip with microswitch | | 2 | Machine torch head complete with W0300160, W0300161 and W0300167 | | 2a | Machine handle | | 3 | Electrode, w/O-Ring - Hf. | | 4 | Tip Ø 0.8 30A | | Tip Ø 1.0 50A | | Tip Ø 1.3 80A | | Tip Ø 1.6 120A | | Tip Ø 1.8 150A | | 5 | Shield cup | | Teflon shield cup | | 6 | Double pointed spacer | | 7 | Wrench for tip and electrode | | 8 | Complete cable - 6 mtr. central connector - Hand torch | | Complete cable - 12 mtr. central connector - Hand torch | | Complete cable - 6 mtr. central connector - Machine torch | | Complete cable - 12 mtr. central connector - Machine torch |

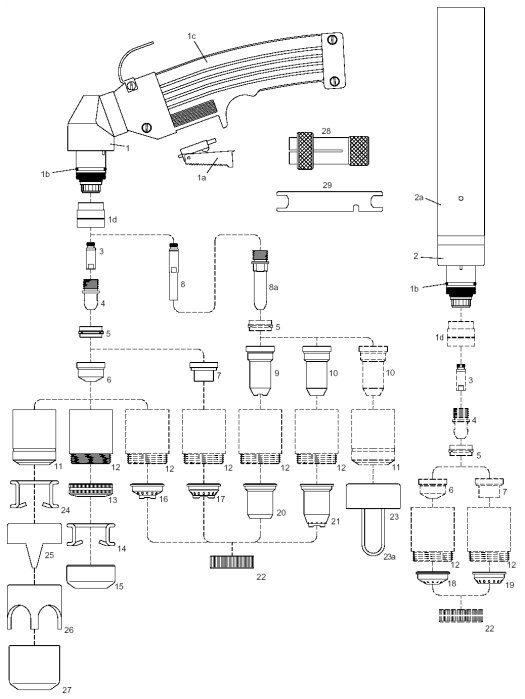

SPARE PARTS FOR EX 100 - EX 100 M - EX 100 M-3V |
Item No: | Omschrijving | | Hand torch complete with 6 mtr cable (central connector) | | Hand torch complete with 12 mtr cable (central connector) | | Machine torch complete with 6 mtr cable (central connector) | | Machine torch complete with 12 mtr cable (central connector) | | 1 | Hand torch head | | 1a | Switch | | 1b | O - Ring (20 pcs) | | 1c | Handgrip complete with switch | | 1d | Front insulator | | 2 | Machine torch head | | 2a | Machine handle | | 3 | Diffusor | | 4 | Electrode - Hf. | | 5 | Swirl ring | | 6 | Tip Ø 1,10 | | Tip Ø 1,35 | | Tip Ø 1,60 | | Gouging tip Ø 2,4 | | Tip long life Ø 1,35 | | Tip long life Ø 1,60 | | 7 | Contact tip Ø 1,35 | | Contact tip Ø 1,60 | | 8 | Extended diffusor | | 8a | Extended electrode - Hf. | | 9 | Extended tip (for contact cutting max. 50A) | | 10 | Extended tip Ø 1,35 - 90A - (for W0300183 + W0300184 or WO300187 | | Extended tip Ø 1,6 - 120A - (for W0300183 + W0300184 or WO300187) | | 11 | Nozzle retaining cap | | 12 | Contact nozzle retaining cap | | Contact nozzle retaining cap, Max.life | | 13 | Spring holder protection nut | | 14 | Spacer spring for code W0300244 (10 pcs) | | 15 | Gouging spacer | | 16 | Spacer for contact cutting, hand | | 17 | Spacer for contact cutting, hand | | 18 | Shield cup, machine | | 19 | Shield cup, machine | | 20 | Shield cup, hand (max. 50A) | | 21 | Spacer for contact cutting, hand | | 22 | Locking nut | | 23 | Spacer complete with springs | | 23a | Spare springs (20 pcs) | | 24 | Spacer spring (10 pcs) | | 25 | Double pointed spacer | | 26 | Crown spacer | | 27 | Gouging spacer | | Air and power cable 6 mtr 1/8" - Hand torch | | Air and power cable 12 mtr 1/8" - Hand torch | | Air and power cable 6 mtr 1/8" - Machine torch | | Air and power cable 12 mtr 1/8" - Machine torch | | Central connector torch side | | Central connector machine side | | 28 | Extractor for swirl ring | | 29 | Wrench for electrode |
|
|
