CEBORA PLASMA ONDERDELEN

PLASMA ONDERDELEN GESCHIKT VOOR CEBORA ®

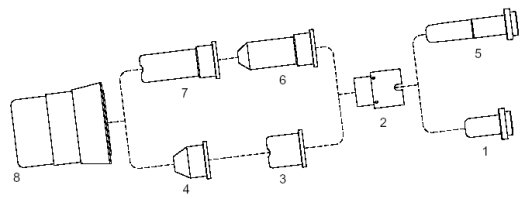

PLASMA ONDERDELEN VOOR P 30 ®

Item No:	Omschrijving
1	Electrode - Zr.
	Electrode - Hf.
2	Swirl ring
3	Tip
4	Conical tip (Lo - Amp)
5	Long electrode - Zr.
	Long electrode - Hf.
6	Long conical tip (Lo - Amp)
7	Long tip
8	Nozzle retaining cap

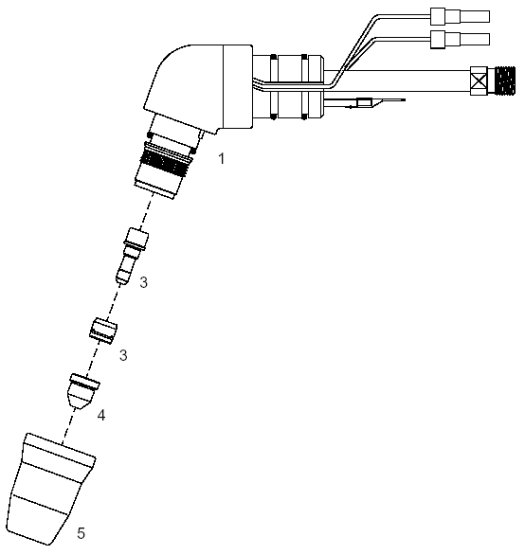

PLASMA ONDERDELEN VOOR CP 40 ®

Item No:	Omschrijving
1	Hand torch head
2	Electrode - Hf.
3	Swirl ring
4	Tip Ø 0.7
5	Nozzle retaining cap

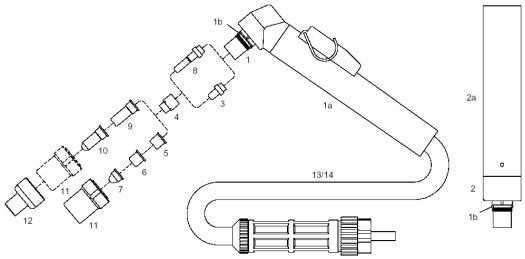

PLASMA ONDERDELEN VOOR P 50 ® - P 35 HF

Item No:	Omschrijving
	Hand torch complete with 6 mtr cable (1/8" connection)
	Hand torch complete with 6 mtr cable (central connector)
	Hand torch complete with 12 mtr cable (1/8" connection)
	Hand torch complete with 12 mtr cable (central connector)
	Machine torch complete with 6 mtr cable (1/8" connection)
	Machine torch complete with 6 mtr cable (central connector)
	Machine torch complete with 12 mtr cable (1/8" connection)
	Machine torch complete with 12 mtr cable (central connector)
1	Hand torch head
1a	Handgrip with microswitch
1b	O - Ring (20 pcs)
2	Machine torch head
2a	Machine handle
3	Electrode - Zr.
	Electrode - Hf.
4	Swirl ring
5	Tip Ø 1.0
	Tip long life Ø 1.0
	Tip long life Ø 1.1
6	Flat tip Ø 1.0
7	Conical tip Ø 1.0 (Lo - Amp)
8	Extended electrode - Zr.
	Extended electrode - Hf.
9	Extended tip, Ø 1.0
	Extended tip, long life Ø 1.0
	Extended tip, long life Ø 1.1
10	Extended conical tip Ø 1.0 (Lo - Amp)
11	Nozzle retaining cap
12	Shield cup, hand (for extended tips 1395, 51102/S and 1306)
13	Air and power cable 6 mtr 1/8" - Hand torch
	Air and power cable 12 mtr 1/8 " - Hand torch
14	Air and power cable 6 mtr 1/8" - Machine torch
	Air and power cable 12 mtr 1/8" - Machine torch

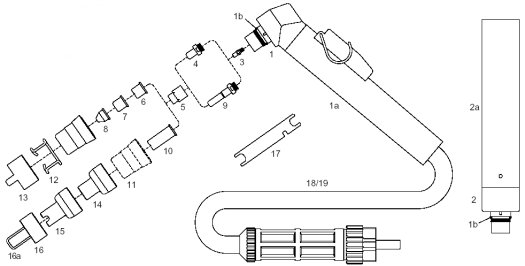

PLASMA ONDERDELEN VOOR P 70 ® - P 35 HF - P 35 PC

Item No:	Omschrijving
	Hand torch complete with 6 mtr cable (1/8" connection)
	Hand torch complete with 6 mtr cable (central connector)
	Hand torch complete with 12 mtr cable (central connector)
	Machine torch complete with 6 mtr cable (1/8" connection)
	Machine torch complete with 6 mtr cable (central connector)
	Machine torch complete with 12 mtr cable (central connector)
1	Hand torch head
1a	Handgrip with microswitch
1b	O - Ring (20 pcs)
2	Machine torch head
2a	Machine handle
3	Diffusor
4	Electrode - Hf.
5	Swirl ring
6	Tip Ø 0.9 - 35A
	Tip long life Ø 1.0 - 50A
	Tip long life Ø 1.1 - 60A
	Tip long life Ø 1.2 - 70A
	Tip Ø 1.2 - 70A
7	Flat tip Ø 1.0
	Flat tip Ø 1.2
8	Conical tip Ø 1.0 (Lo - Amp)
	Conical tip Ø 1.2
9	Extended electrode - Hf.
10	Extended tip Ø 0.9 - 35A
	Extended tip long life Ø 1.0 - 50A
	Extended tip long life Ø 1.1 - 60A
	Extended tip long life Ø 1.2 - 70A
11	Nozzle retaining cap
12	Spacer spring (10 pcs)
13	Double pointed spacer
14	Shield cup, hand (for extended tips 1366 and 1395)
15	Spacer for contact cutting, hand (for extended tips 51102/S and 51096/L)
16	Spacer complete with springs
16a	Spare springs (20 pcs)
17	Wrench for electrode
18	Air and power cable 6 mtr 1/8" - Hand torch
	Air and power cable 12 mtr 1/8" - Hand torch
19	Air and power cable 6 mtr 1/8" - Machine torch
	Air and power cable 12 mtr 1/8" - Machine torch

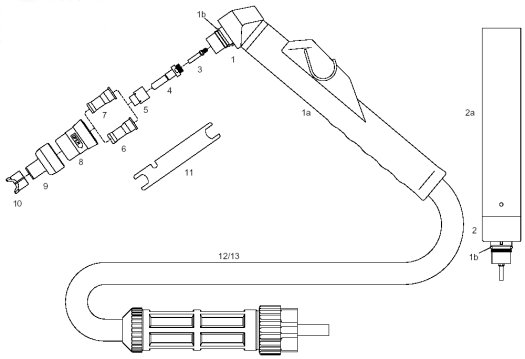

PLASMA ONDERDELEN VOOR CP 90 ®

Item No:	Omschrijving
	Hand torch complete with 6 mtr cable (central connector)
	Hand torch complete with 12 mtr cable (central connector)
	Machine torch complete with 6 mtr cable (central connector)
	Machine torch complete with 12 mtr cable (central connector)
	Hand torch complete with 6 mtr cable (1/8" connection)
1	Hand torch head
1a	Handgrip with microswitch
1b	O - Ring (20 pcs)
2	Machine torch head
2a	Machine handle
3	Diffusor
4	Electrode - Hf.
5	Swirl ring
6	Tip long life Ø 1.0 - 20-50A (for use with item. 8 only)
7	Tip long life Ø 1.2 - 50-70A (for use with item. 8 only)
	Tip long life Ø 1.3 - 70-90A (for use with item. 8 only)
8	Nozzle retaining cap (for use with item. 6-7 only)
9	Shield cup, hand
10	Spacer for contact cutting, hand
11	Wrench for electrode
12	Air and power cable 6 mtr 1/8" - Hand torch (central connector)
	Air and power cable 12 mtr 1/8" - Hand torch (central connector)
13	Air and power cable 6 mtr 1/8" - Machine torch (central connector)
	Air and power cable 12 mtr 1/8" - Machine torch (central connector)
Not shown	Air and power cable 6 mtr 1/8" - Hand torch (1/8" connection)

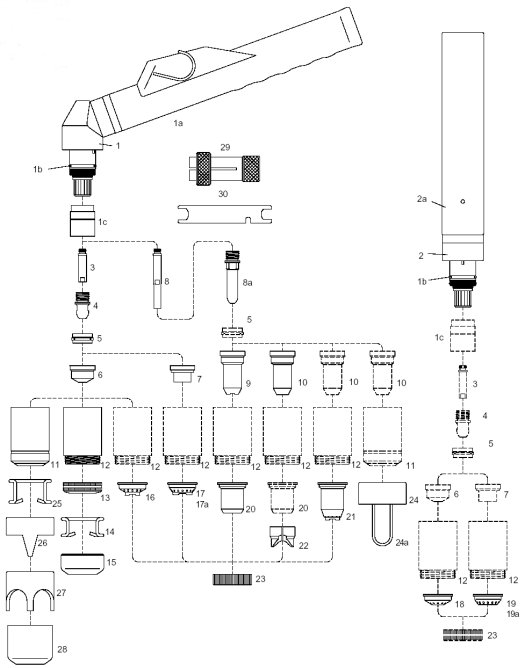

PLASMA ONDERDELEN VOOR P 150 ® - CP 160 ®

Item No:	Omschrijving
	Hand torch complete with 6 mtr cable (central connector)
	Hand torch complete with 12 mtr cable (central connector)
	Machine torch complete with 6 mtr shielded cable (central connector
	Machine torch complete with 12 mtr shielded cable (central connector)
	Hand torch complete with 6 mtr cable (1/8" connection)
	Hand torch complete with 6 mtr cable (central connector)
	Hand torch complete with 12 mtr cable (central connector)
	Machine torch complete with 6 mtr cable (1/8" connection)
	Machine torch complete with 6 mtr cable (central connector)
	Machine torch complete with 12 mtr cable (central connector)
1	Hand torch head
1a	Handgrip with microswitch
1b	O - Ring (20 pcs)
1c	Front insulator
2	Machine torch head
2a	Machine handle
3	Diffusor
4	Electrode - Hf.
5	Swirl ring
6	Tip Ø 1,10
	Tip Ø 1,35
	Tip Ø 1,60
	Tip Ø 1,80
	Gouging tip Ø 3,0
	Tip long life Ø 1,35
	Tip long life Ø 1,60
	Tip long life Ø 1,80
7	Contact tip Ø 1,35
	Contact tip Ø 1,60
	Contact tip Ø 1,80
8	Extended Diffusor
8a	Extended electrode - Hf.
9	Contact extended tip max. 50A
10	Extended tip Ø 1,35 - 90A
	Extended tip Ø 1,60 - 120A
	Extended tip Ø 1,80 - 150A
11	Nozzle retaining cap
12	Contact nozzle retaining cap
	Contact nozzle retaining cap, Max.life
13	Spring holder protection nut
14	Spacer spring for code 51952 (10 pcs)
15	Gouging spacer
16	Spacer for contact cutting, hand
17	Spacer for contact cutting, hand
17a	Spacer for contact cutting, hand
18	Shield cup, machine
19	Shield cup, machine
19a	Shield cup, machine
20	Shield cup, hand (max. 50A)
21	Spacer for contact cutting, hand
22	Spacer for extended tips High Amp.
23	Locking nut
24	Spacer complete with springs
24a	Spare springs (20 pcs)
25	Spacer spring (10 pcs)
26	Double pointed spacer
27	Crown spacer
28	Gouging spacer
29	Extractor for swirl ring
30	Wrench for electrode
	Air and power cable 6 mtr 1/8" - Hand torch
	Air and power cable 12 mtr 1/8" - Hand torch
	Air and power cable 6 mtr 1/8" - Machine torch
	Air and power cable 12 mtr 1/8" - Machine torch
