BINZEL PLASMA ONDERDELEN
PLASMA ONDERDELEN GESCHIKT VOOR BINZEL ® |

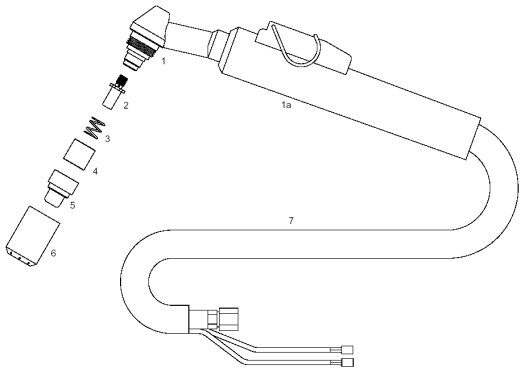

PLASMA ONDERDELEN VOOR PSB 30 |
Item No: | Omschrijving | | Torch complete with 4 mtr cable (3/8 connection) | | Torch complete with 6 mtr cable (3/8 connection) | | 1 | Torch head | | 1a | Handgrip complete with microswitch | | 2 | Electrode mm. 14,5 - Zr. | | Electrode mm. 15,0 - Zr. | | Electrode mm. 15,5 - Zr. | | 3 | Spring (10 pcs) | | 4 | Insulating sleeve for H F version | | Spring sleeve | | 5 | Tip Ø 1,0 | | Tip Ø 1,2 | | 6 | Air diffusor, insulator | | 7 | Air and power cable 4 mtr (3/8 connection) | | Air and power cable 6 mtr (3/8 connection) |
|

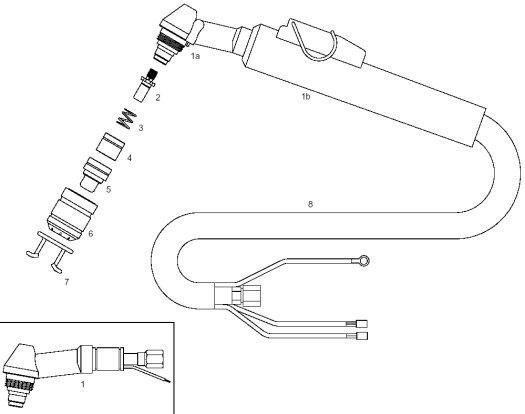

PLASMA ONDERDELEN VOOR PSB 31 |
Item No: | Omschrijving | | Torch complete with 4 mtr cable (1/4 connection) | | Torch complete with 6 mtr cable (1/4 connection) | | Torch HF S complete with 4 mtr cable (1/4 connection) | | Torch HF S complete with 6 mtr cable (1/4 connection) | | 1 | Torch body 31/31KK | | 1a | Torch body 31 with safety | | 1b | Handgrip complete with microswitch | | 2 | Electrode mm. 15,5 - Zr. | | Electrode mm. 16,0 - Zr. | | Electrode mm. 16,5 - Zr. | | 3 | Spring (10 pcs) | | 4 | Insulating sleeve for H F version | | Spring sleeve | | 5 | Tip Ø 1,0 | | Tip Ø 1,2 | | 6 | Air diffusor, insulator | | Air diffusor, insulator, with safety | | 7 | Spacer spring (10 pcs) | | 8 | Air and power cable 4 mtr (1/4 connection) | | Air and power cable 6 mtr (1/4 connection) |

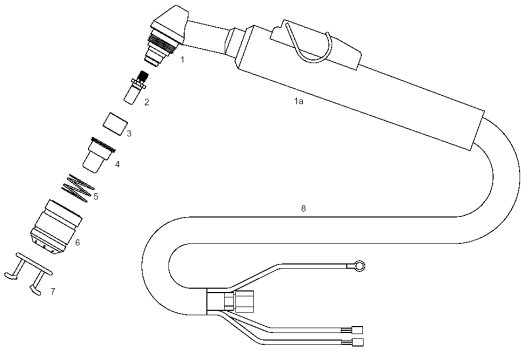

PLASMA ONDERDELEN VOOR PSB 31 KK |
Item No: | Omschrijving | | Torch complete with 4 mtr cable, (1/4 connection) | | Torch complete with 6 mtr cable, (1/4 connection) | | 1 | Torch body | | 1a | Handgrip complete with microswitch | | 2 | Electrode mm. 15,5 - Zr. | | Electrode mm. 16,0 - Zr. | | Electrode mm. 16,5 - Zr. | | 3 | Insulating sleeve | | 4 | Tip Ø 1,0 | | Tip Ø 1,2 | | 5 | Spring (10 pcs) | | 6 | Air diffusor, insulator | | 7 | Spacer spring (10 pcs) | | 8 | Air and power cable 4 mtr (1/4 connection) | | Air and power cable 6 mtr (1/4 connection) |

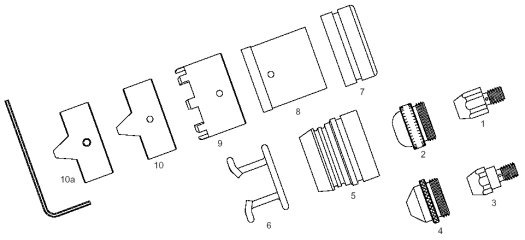

PLASMA ONDERDELEN VOOR PSB 60, PSB 80, PSB 121 |
Item No: | Omschrijving | | 1 | Electrode - Zr. | | Electrode - Hf. | | 2 | Tip Ø 1,0 | | Tip Ø 1,3 | | Tip Ø 1,5 | | Tip Ø 1,8 | | Tip Ø 2,0 | | 3 | Special electrode - Zr. | | Special electrode - Hf. | | 4 | Tip 30° Ø 1,0 | | Tip 30° Ø 1,3 | | Tip 30° Ø 1,5 | | Tip 30° Ø 1,8 | | 5 | Spring support | | 6 | Spacer spring (10 pcs) | | 7 | Distance sleeve | | 8 | Distance nozzle support | | 9 | Crown spacer nozzle | | 10 | Double pointed nozzle | | 10a | Double pointed nozzle with screws and key |
|
|
